With Standard range to the customized ranges, we design and manufacture vacuum furnaces as
per the requirement of the customer. We build Graphite hot zone and all metal hot zone type
furnaces based on the end application with the fast cooling capabilities, advanced control
systems and easy operational working style.

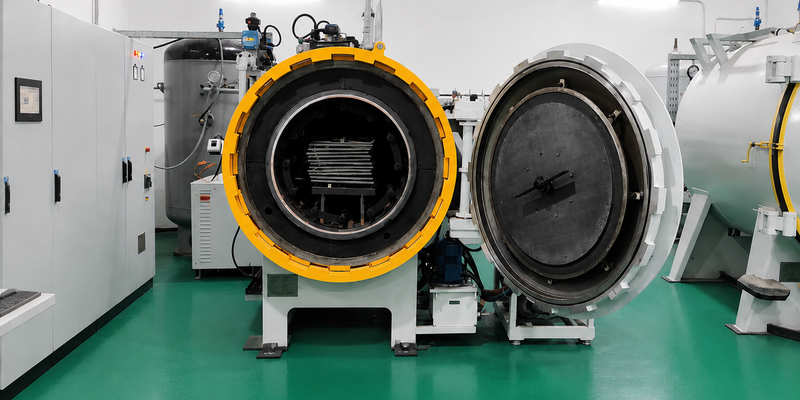

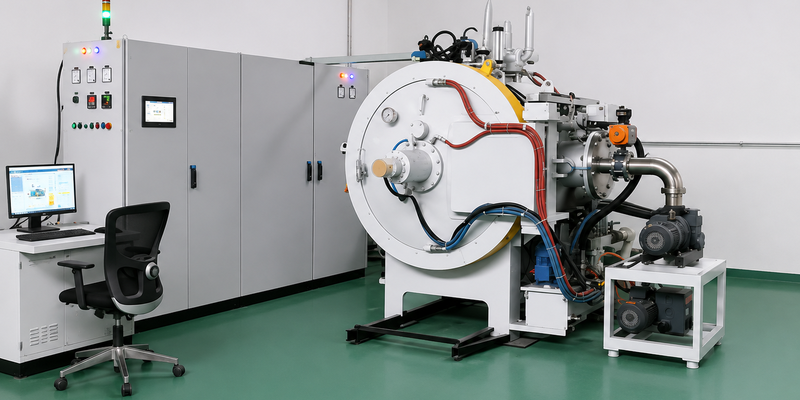

Front Loading / Horizontal Vacuum Furnace
Title
Description
Furnace Type
Cold Wall (front loading)
Hot Zone
Cylindrical/Cubical
Temperature Range
800°C to 1600°C (furnace)
Vacuum
10 -2 mbar to 10 -6 mbar
Vacuum System
Rotary-Roots combination/Diffusion pump/Turbo Molecular pump/Cryo pump
Heating Elements
Molybdenum/Tungsten/Graphite/Nichrome
Gas Quench
Up to 5 bar, optionally 10 bar
Instrumentation
options
Thyristor, Programmable Temperature Controller, IPC, Temperature Recorder,
PLC, SCADA, HMI
Features of Vertical Vacuum Furnace
Title
Description
Furnace Type
Cold Wall (front loading)
Hot Zone
Cylindrical/Cubical
Temperature Range
800°C to 1600°C (furnace)
Vacuum
10 -2 mbar to 10 -6 mbar
Vacuum System
Rotary-Roots combination/Diffusion pump/Turbo Molecular pump/Cryo pump
Heating Elements
Molybdenum/Tungsten/Graphite/Nichrome
Gas Quench
Up to 5 bar, optionally 10 bar
Instrumentation
options
Thyristor, Programmable, IPC
Product Range :
Hardening
Tempering
Annealing
Carburizing
Sintering
Brazing
